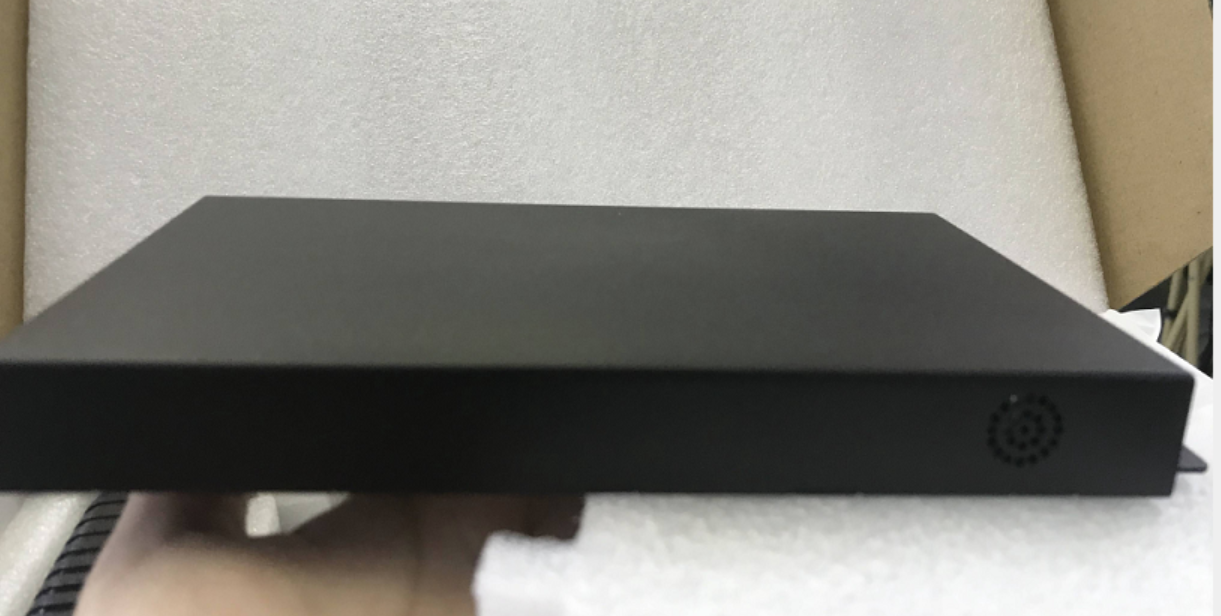

RK3328 RK3288 RK3399 HD 2.0 Digital Signage Media Player Support 4K LVDS EDP Android 9.0 10.0 Metal box digital signage
OverView:
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
Characteristic:
1, It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
2, Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
3, A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
4, Multi-channel USB interface, serial output.
5, Support 4K video play with HDMI 2.0 HD output.
6, Strong anti-electromagnetic interference and electromagnetic compatibility.
4K Digital Signage Player allows you to output Ultra HD 4K and 1080p video, as well as HTML5 content, to any display via an HD interface.
Featuring internal storage, a safety feature, and more, it is suitable for use with menu boards, hospitality screens, campus signage, corporate.
Product Specifictions:
Hardware:
| CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Deposit | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (Default 16GB) |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
| EDP screen interface, support resolution 1920x1080 |
| Screen voltage | Support 3.3V/5V/12V optional |
| Network | With RJ45 interface, support 10/100/1000 Ethernet |
| Support 4G PCIE interface |
| With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0 |
| Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI camera x2 |
| USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0 |
| 3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.) |
| TF card, maximum support 64GB |
| Class D amplifier: 5W*2 8 ohms, support microphone |
| HDMI 2.0 output |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/3A |
SOFTWARE:
| Operating system | Android 7.0-10.0 |
| Basic software function | Web browsing, email, e-book, resource manager |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | Multinational voice |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock |
| Calculator |
| Note |
| Weather + clock |
| Recording |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| Email |
| Gmail |
| System Management | APK installer |
| Original Android system, open root permissions, product customization development |
| Real-time remote monitoring, 7*24 hours unattended |
| Support OTA remote upgrade |
| System setting |
| Google Maps |
| Global time |
Industrial player for advertising 24/7
Advertising media box 2GB+16GB WIFI/BT/LAN/4G Android OS
Android Digital Signage Advertising Media Player Box android 7.1-10.0
digital signage advertising 4k player Box
Industrial Looping Digital Signage Media Player Box support wifi bt lan 4G optional metal box lvds edp hd output
We mainly manufacture
1, Android board for industrial digital signage,
(RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128, RK3566 and RK3568, ...)
2, Android digital signage media player box, (RK3328, RK3288, RK3399)
3, Stretched lcd display signage,
4, Open frame lcd display signage, (Such as, 10.1’’, 15.6’’, 21.5’’, …)
5, Other types wall/desktop/standing lcd digital signage, (from 7’’ to 84’’, ...)
6, Embedded touch desk, (Such as, 32-inch, ...)
7, Face recognition temperature detection and attendance equipment, (8-inch)
8, CMS system. (Publish contents/programs by remotely.)
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
WELCOME TO CONTACT US FOR THE PRODUCT INQUIRY!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
